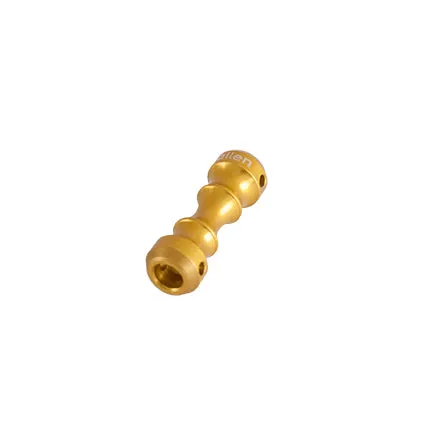

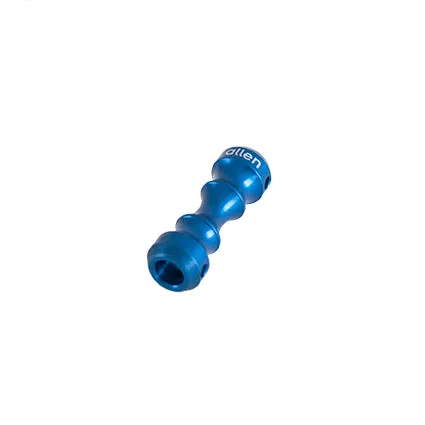

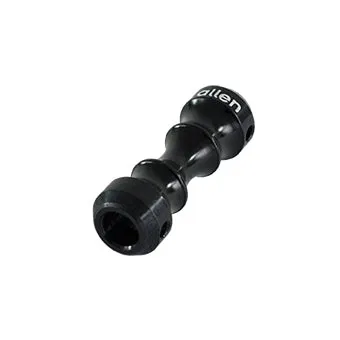

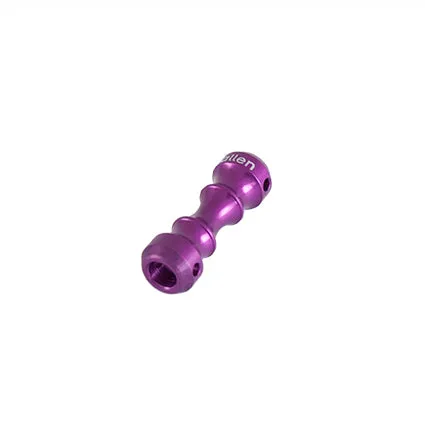

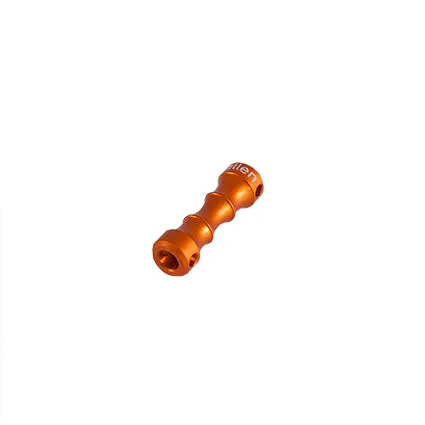

Allen Dog Bones can be used in a variety of applications. Ideal for use with soft shackles as rope stops. CNC machined from aluminium our Dog Bones are extremely hard wearing. Add a bit of colour to your boat with the Allen Dog Bones.
Available in 6 colours and 4 sizes - see menu drop down for selections.
Colours: Black, Blue, Gold, Silver, Purple and Orange.

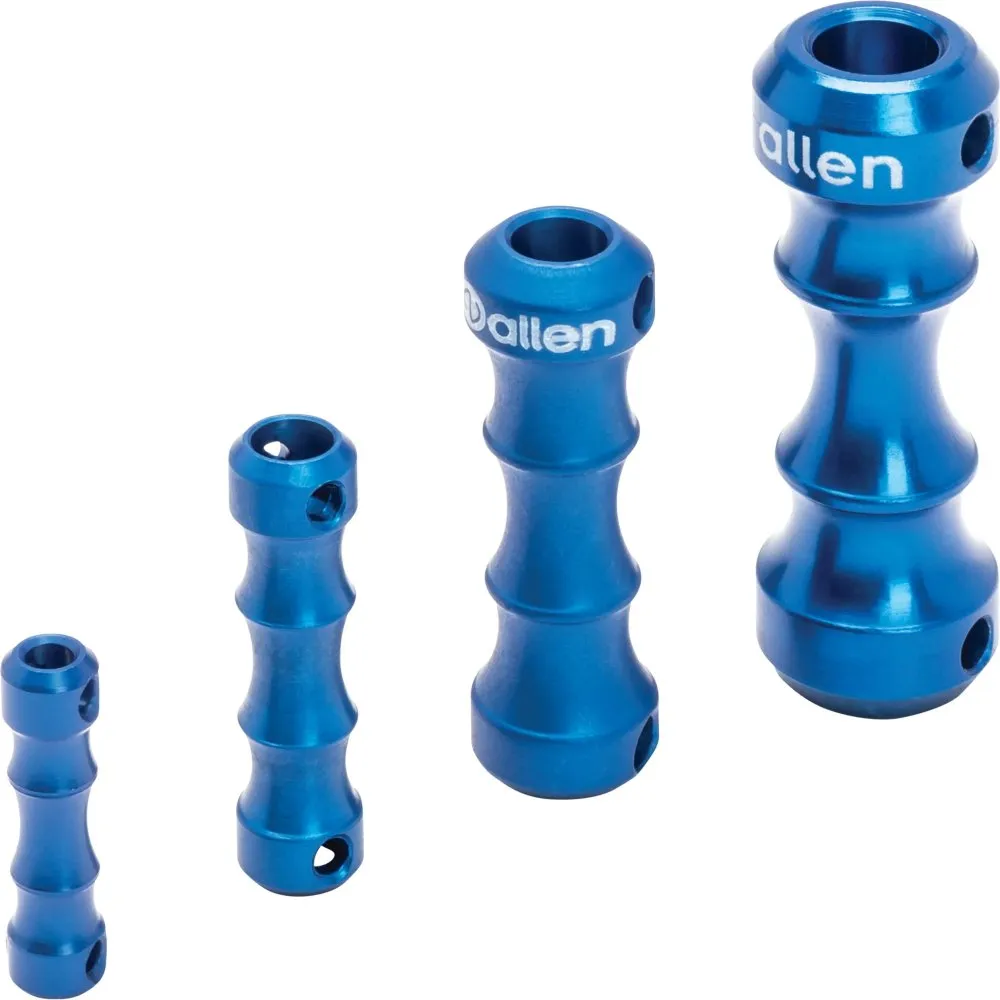

Sizes: 6mm, 8mm, 12mm, and 16mm.
Allen Dog Bone Properties
ALLEN 6MM DOG BONE - A8606
| Length: | 24 mm |
|---|---|
| Maximum Outside Diameter: | 6 mm |
| Minimum Outside Diameter: | 4 mm |
| Rope Diameter: | 2-4 mm |
| Breaking Load: | 600 kg |
| Safe Working Load: | 350 kg |
ALLEN 8MM DOG BONE - A8608
| Length: | 32 mm |
|---|---|
| Maximum Outside Diameter: | 8 mm |
| Minimum Outside Diameter: | 6 mm |
| Rope Diameter: | 4-5 mm |
| Breaking Load: | 1100 kg |
| Safe Working Load: | 600 kg |
ALLEN 12MM DOG BONE - A8612
| Length: | 40 mm |
|---|---|
| Maximum Outside Diameter: | 12 mm |
| Minimum Outside Diameter: | 7 mm |
| Rope Diameter: | 5-6 mm |
| Breaking Load: | 2500 kg |
| Safe Working Load: | 1400 kg |
ALLEN 16MM DOG BONE - A8616
| Length: | 48 mm |
|---|---|
| Maximum Outside Diameter: | 16 mm |
| Minimum Outside Diameter: | 8 mm |
| Rope Diameter: | 6-8 mm |
| Breaking Load: | 3500 kg |
| Safe Working Load: | 2000 kg |
